UVITRON INTERNATIONAL · 4-CHANNEL UV LED
SkyBeam 4-Channel UV LED Curing System
P/N UV3979 · 4-channel LED controller
A four-channel UV LED spot controller for rapid curing of photo-initiated adhesives, resins, coatings and inks. Drives up to four independent light guides at 365–405 nm, up to 11,000 mW/cm² at the tip, with instant on/off and no warm-up.
WHY THE SKYBEAM
Instant on/off, zero warm-up
4 independent LED channels
365–405 nm, guide-dependent
Up to 11,000 mW/cm² irradiance
20,000 hr LED life, cool & clean
RS-232, foot-switch & interlock
New customer? 5% off your first order
$
2,900
excl. tax & shipping
New-customer price $2,755 · first order, no minimum
Published price, no quote wall.
Wavelength & light guides specified at order.
In Stock
Ships in 24–48 hrs from West Springfield, MA. Order today for dispatch this week.
Volume discounts. Ask for tiered pricing on multi-unit & OEM orders.
Sold & shipped byUV Spot Shop
Warranty2-Year OEM
Returns30-day, unused
Invoice, payment link, ACH or card via
Overview
The SkyBeam is a four-channel UV LED spot curing controller that drives up to four independent light guides at 365, 385, 395 or 405 nm, each channel with its own timer and life log. Peak irradiance reaches 11,000 mW/cm² at the guide tip, curing photo-initiated adhesives in seconds with instant on/off and no warm-up.
Solid-state LEDs mean 20,000-hour typical life, cool operation, and repeatable dose, output is adjustable 10–100% and current-regulated to ±1% for validated, part-to-part consistency. A wide-range 90–264 VAC power-factor-corrected supply runs it anywhere in the world.
Built for automation: front-panel, foot-switch, or RS-232 control, signal ports and a safety interlock, plus a security key-lock. A convection-cooled controller with fan- or convection-cooled guides keeps it quiet and clean on the production line.
At a glance
✓Instant on/off, no warm-up
✓4 independent channels & timers
✓365 / 385 / 395 / 405 nm guides
✓Up to 11,000 mW/cm² at the tip
✓20,000 hr LED life, cool & clean
✓RS-232 / foot-switch / interlock
Key Features
Four independent channels
Drive up to four light guides, each with its own intensity, timer, and life record, from a single controller.
Instant on/off
Solid-state LEDs need no warm-up or cool-down; full irradiance the moment you trigger, every cycle.
365–405 nm options
Match the LED wavelength to your adhesive: 365, 385, 395 or 405 nm light guides with 6 & 12 mm lenses.
Regulated, repeatable dose
Current-regulated to ±1% and adjustable 10–100%, with 0–999.9 s auto timers for validated, part-to-part exposure.
Automation-ready

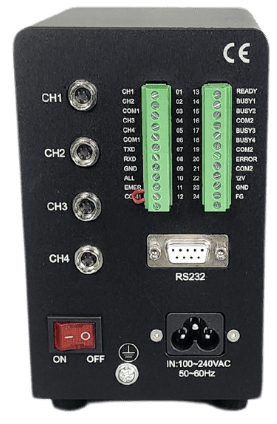

Front-panel, foot-switch, or RS-232 control plus signal ports and a safety interlock for full production-line integration.
20,000-hour LED life
Cool-running, long-life solid-state sources with convection cooling for low maintenance and quiet, clean duty.
Technical Specifications
Per Uvitron International SkyBeam Instruction Manual (Rev E). Data subject to change without notice.
| SOURCE & OUTPUT | |
| LED type | 365 / 385 / 395 / 405 nm (guide-dependent) |
| Peak irradiance (365 nm) | 11,000 mW/cm² @ 3 mm spot |
| Irradiance / spot options | 11,000 @3mm · 5,600 @6mm · 1,500 @12mm |
| Power adjust | 10–100%, front-panel |
| Current regulation | ±1% (to LEDs) |
| Timer | Auto 0–999.9 s / Manual |
| Warm-up / LED life | None, instant on/off · 20,000 hrs typ. |
| ELECTRICAL | |
| AC input | 90–264 VAC wide-range (PFC) |
| Max input current | 1.0 A (120 V) / 0.5 A (240 V) |
| Input frequency | 47–63 Hz |
| CONTROL & INTERFACE | |
| Channels | 4 independent (4 life records) |
| Control | Front panel, foot switch, RS-232 |
| External I/O | Signal ports, safety interlock, key-lock |
| Aux voltage | 12 V, 0.1 A |
| PROTECTION & COOLING | |
| Cooling | Controller convection; guides fan/convection |
| Protection | Inrush limit, surge, open-circuit, over-temp |
| ENVIRONMENTAL | |
| Operating temp | +10 to +40 °C (50–104 °F) |
| Storage temp | 0 to +60 °C (32–140 °F) |
| Relative humidity | 20–90% operating, non-condensing |
| PHYSICAL | |
| Dimensions (L×W×H) | 6.63 × 3.62 × 5.91 in |
| Weight | 3.25 lb (1.47 kg), controller |
| Warranty | 2 years, OEM (manufacturer-backed) |
In the Box
UV3979
4-channel LED controller
SkyBeam controller, 4 life records
UV4053
LED light guide(s)
365/385/395/405 nm, 6 & 12 mm lenses, 1–4, specified at order
UV4045
Exposure foot switch
2 m cable
UV4046
Security switch key
Set of two
UV4047
AC power cord
6 ft US; type per country
UV0496
UV safety glasses
Shade 5.0
UV4011
Instruction manual
Printed reference
Terminal-block screwdriver
For interface wiring
Downloads
How Ordering Works
No online checkout, and no account to create. You send one quote request, we confirm the exact build and price, and you order from a Stripe payment link you can route straight to purchasing. Here is every step, start to finish.
NEW CUSTOMER, 5% OFF
First order only, no minimum, and not combined with volume or OEM pricing. Mention it on your quote and we apply the 5% to your invoice, before tax and shipping.
1
Request a quote
Free, about two minutes, no account. Send your wavelength needs (365 / 385 / 395 / 405 nm) and application, or just ask us to recommend the setup.
2
We confirm the build
Within one business day a US-based engineer checks your adhesive and substrate, then confirms the wavelengths, light guides, and any line integration.
3
Formal quote & payment link
Itemized, with any volume or OEM tier applied, and valid 30 days. Pay by Stripe link, ACH, or card, or hand it to purchasing.
4
Ships in 24–48 hrs
In-stock hardware leaves from US stock in 24 to 48 hours, with tracking. Every system carries a 2-year OEM warranty and 30-day returns.
For purchasing & procurement
✓Purchase orders welcome
✓Itemized quotation for your records
✓Tax-exempt orders supported
✓Pay by ACH, card, or invoice via Stripe
✓Ships from US stock, no customs delays
✓No minimum, single units welcome
✓Volume & OEM tiers on multi-unit orders
✓Quotes held 30 days
Note anything your purchasing team needs in the quote request, and we will include it with your formal quote.
Order with confidence
✓Not sure which wavelength your adhesive needs? Look it up in our cure database, or send the datasheet on your quote and we match the channel to it.
✓Genuine Uvitron equipment, not a clone or gray-market import.
✓2-year OEM warranty and 30-day returns on unused equipment.
What to have ready for a same-day quote
The more of these you can share, the faster and sharper your quote. Missing something? Send what you have, our engineers fill the gaps.
✓Your adhesive or its datasheet
✓Substrate & spot size
✓Target cycle time or throughput
✓Wavelength(s) you need
✓Quantity needed
SkyBeam FAQ
Which wavelength should I choose?
Match the LED to your adhesive's spec: 365 nm for deep or through-cure and older chemistries, 385/395/405 nm for most modern UV adhesives. Your datasheet lists the wavelength it needs.
How many channels do I need?
SkyBeam drives up to four independent light guides, each with its own timer and life log. Order 1–4 guides now and add more later as your line grows.
Can it run on an automated line?
Yes. Control via front panel, foot switch, or RS-232, with signal ports and a safety interlock for full production-line integration.
Do the LEDs need warm-up?
No, solid-state LEDs are instant on/off with no warm-up or cool-down, and last 20,000 hours typical. Full irradiance the moment you trigger.
How do I set wavelength, light guide, and exposure?
Your adhesive datasheet specifies the wavelength and dose; pick the matching LED head, size the light guide to your spot, and set the per-channel timer to reach that dose. Ask our team on a quote request if you'd like a hand.
