UVITRON INTERNATIONAL · 200 W ARC SYSTEM
SunSpot 2 UV Spot Curing System
P/N UV1853 (120 VAC) · UV2132 (240 VAC)
A benchtop or machine-mounted short-arc spot source for rapid curing of photo-initiated adhesives, resins, coatings and inks. Delivers >18 W/cm² UVA through a flexible light guide with an integral timer and shutter, lab-grade output in a 6 lb chassis.
WHY THE SUNSPOT 2
Cures in 1–10 s, no heat cycle
Broad-spectrum, UVB/UVC capable
Integral timer, shutter & foot pedal
Multi-pole guides, up to 4 zones
Quick-change lamp, >2,000 hr life
120 or 240 VAC · bench or fixtured
New customer? 5% off your first order
$
4,220
excl. tax & shipping
New-customer price $4,009 · first order, no minimum
Published price, no quote wall.
Voltage & light-guide options specified at order.
In Stock
Ships in 24–48 hrs from West Springfield, MA. Order today for dispatch this week.
Volume discounts. Ask for tiered pricing on multi-unit & OEM orders.
Sold & shipped byUV Spot Shop
Warranty2-Year OEM
Returns30-day, unused
Invoice, payment link, ACH or card via
Overview

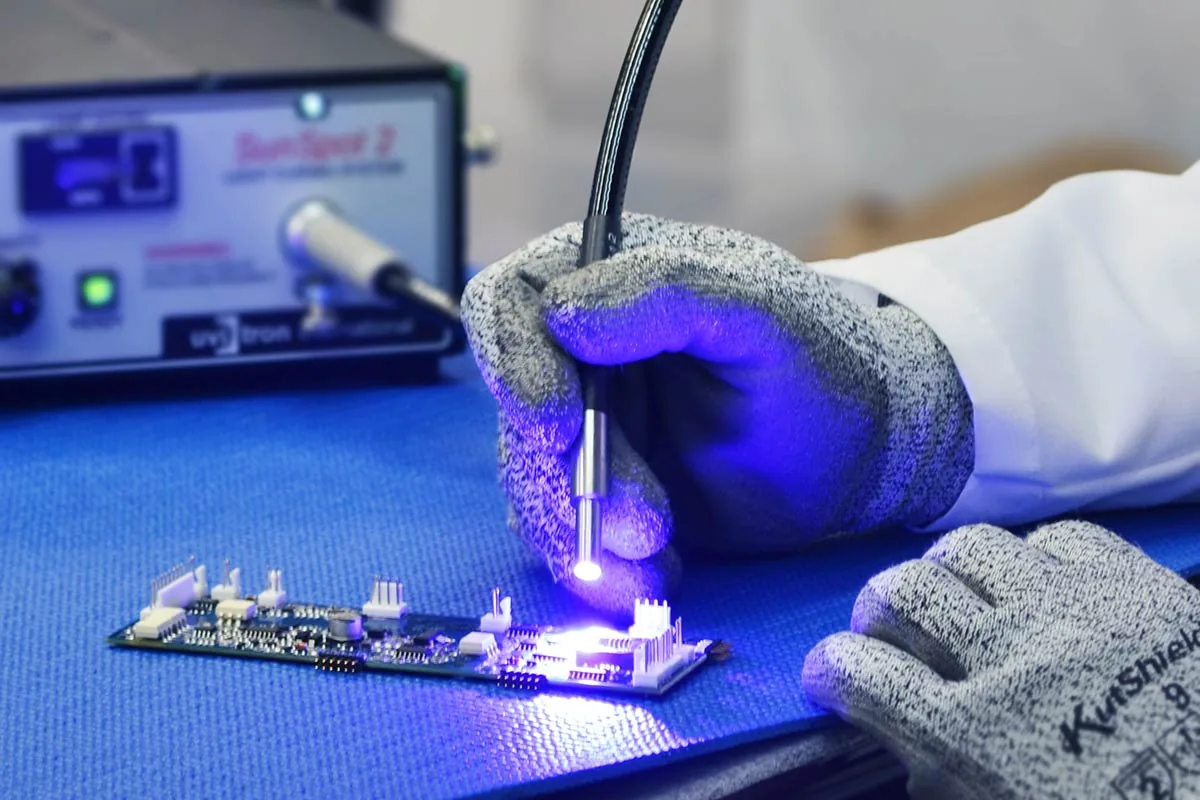

The SunSpot 2 concentrates the output of a 200-watt, UVA-enhanced mercury short-arc lamp into a single flexible light guide, delivering more than 18 W/cm² of UVA to the bond line. That intensity cures most photo-initiated chemistries in one to a few seconds, without the ovens, racks, or thermal cycling that heat-sensitive electronic assemblies can't tolerate.
A broad 275–650 nm spectrum makes it compatible with adhesives that require UVB/UVC or visible content, not just narrow-band UVA, the reason many labs keep an arc system alongside their LED lines. Output is adjustable from 25–100% via the front control knob and light-guide depth, and lamp power is regulated to ±1.0% for repeatable dose.
An integral electronic timer and shutter, foot-pedal trigger, and support for multi-pole light guides make it equally at home in a lab or on a production bench. Quick-change lamp cartridges and filtered dual-fan cooling keep uptime high.
At a glance
✓Cures in 1–10 seconds, no heat cycle
✓Broad-spectrum arc, UVB/UVC capable
✓Integral timer & shutter + foot pedal
✓Multi-pole light guides (up to 4 zones)
✓Quick-change lamp, >2,000 hr life
✓120 or 240 VAC · benchtop or fixtured
Key Features
High-intensity UVA
>18,000 mW/cm² at the light-guide tip, among the highest output in a benchtop arc source, for the fastest cures on demanding chemistries.
Regulated, repeatable dose
Lamp power regulated to ±1.0% and adjustable 60–100%, with an integral timer for consistent, validated exposure part after part.
Broad 275–650 nm spectrum
Covers UVB/UVC through visible, cures surface-inhibited and dual-cure adhesives that single-wavelength LEDs can't.
Shutter, timer & foot pedal
A mechanical shutter with electronic timer and included foot-pedal trigger keeps the lamp warm between cures for instant, hands-free exposure.
Multi-pole light guides
Split one lamp across up to four balanced output legs to cure multiple zones simultaneously from a single system.
Built to run
Quick-change lamp cartridge, filtered dual-fan cooling, and full protection (surge, hot re-strike, over-temp) for reliable production duty.
Technical Specifications
Per Uvitron International SunSpot 2 Instruction Manual (Rev D). Data subject to change without notice.
| SOURCE & OUTPUT | |
| Lamp type | 200 W mercury short-arc, quick-change |
| Radiation flux | 275–650 nm |
| Peak intensity (typ.) | >18,000 mW/cm² UVA (320–390 nm) |
| Output range | 25–100% (knob & guide depth) |
| Power regulation | ±1.0%, adjustable 60–100% |
| Lamp life (typ.) | >2,000 hours |
| Warm-up / restart | 1–2 min / 2–5 min cool-down |
| ELECTRICAL | |
| AC input | 100–120 VAC or 200–240 VAC ±10% |
| Max input current | 4.7 A (120 V) / 2.5 A (240 V) |
| Input frequency | 47–63 Hz |
| PROTECTION & COOLING | |
| Cooling | Dual DC fans, filtered (IR-controlled) |
| Over-temp shutdown | 65 °C internal |
| Protection | Surge, short/open circuit, hot re-strike, over-temp |
| Ignition retry timeout | 3 minutes |
| ENVIRONMENTAL | |
| Operating temp | +10 to +40 °C (50–104 °F) |
| Storage temp | 0 to +60 °C (32–140 °F) |
| Relative humidity | 30–75% operating, non-condensing |
| PHYSICAL | |
| Dimensions (L×W×H) | 10.51 × 8.64 × 4.05 in |
| Weight | 5.92 lb (chassis only) |
| Warranty | 2 years, OEM (manufacturer-backed) |
In the Box
UV1866
200 W lamp/reflector module
UVA-enhanced short-arc, installed
UV2554
Heat-filter assembly
300–450 nm, installed
UV0570
1 m × 5 mm light guide
Liquid-filled; other types optional
UV1860
Shutter foot pedal
With 6 ft cable
UV0496
UV/IR safety glasses
Shade 5.0, fit-over (OTG)
UV0341
AC power cord
7′6″ US; other types available
UV1854
Instruction manual
Printed reference
Timer & shutter
Integral to the chassis
Downloads
How Ordering Works
No online checkout, and no account to create. You send one quote request, we confirm the exact build and price, and you order from a Stripe payment link you can route straight to purchasing. Here is every step, start to finish.
NEW CUSTOMER, 5% OFF
First order only, no minimum, and not combined with volume or OEM pricing. Mention it on your quote and we apply the 5% to your invoice, before tax and shipping.
1
Request a quote
Free, about two minutes, no account. Send your input voltage (120 or 240 VAC) and application, or just ask us to recommend the setup.
2
We confirm the build
Within one business day a US-based engineer checks your adhesive and substrate, then confirms voltage, light guide, and any accessories.
3
Formal quote & payment link
Itemized, with any volume or OEM tier applied, and valid 30 days. Pay by Stripe link, ACH, or card, or hand it to purchasing.
4
Ships in 24–48 hrs
In-stock hardware leaves from US stock in 24 to 48 hours, with tracking. Every system carries a 2-year OEM warranty and 30-day returns.
For purchasing & procurement
✓Purchase orders welcome
✓Itemized quotation for your records
✓Tax-exempt orders supported
✓Pay by ACH, card, or invoice via Stripe
✓Ships from US stock, no customs delays
✓No minimum, single units welcome
✓Volume & OEM tiers on multi-unit orders
✓Quotes held 30 days
Note anything your purchasing team needs in the quote request, and we will include it with your formal quote.
Order with confidence
✓Not sure it will cure your adhesive? Look it up in our cure database, or send the datasheet on your quote and we match the system to the wavelength and dose it needs.
✓Genuine Uvitron equipment, not a clone or gray-market import.
✓2-year OEM warranty and 30-day returns on unused equipment.
What to have ready for a same-day quote
The more of these you can share, the faster and sharper your quote. Missing something? Send what you have, our engineers fill the gaps.
✓Your adhesive or its datasheet
✓Substrate & spot size
✓Target cycle time or throughput
✓Your mains voltage (120 or 240 VAC)
✓Quantity needed
SunSpot 2 FAQ
Which part number do I order?
UV1853 for 100–120 VAC mains, UV2132 for 200–240 VAC. The unit is factory-configured for one input, connecting to the wrong voltage can damage it, so confirm your supply before ordering.
How is it different from an LED system?
The SunSpot 2's arc lamp covers a broad 275–650 nm spectrum, so it cures chemistries that need UVB/UVC or visible content, not just single-wavelength UVA. It's the right choice when your adhesive datasheet calls for broadband output.
Can I cure more than one spot at a time?
Yes, multi-pole light guides split the output into up to four balanced legs from a single lamp. The manual covers balancing procedure for even output across poles.
What's the lamp life and warm-up?
Typical lamp life exceeds 2,000 hours. Allow 1–2 minutes to warm up to full output; a hot lamp needs 2–5 minutes to cool before it will re-strike.
How do I pick the light guide and exposure?
Your adhesive datasheet lists the wavelength and dose it needs; match the light-guide diameter to your spot size and set exposure to hit that dose. Our US-based team can help you spec it on a quote request.
